The Balboa B7 spa pack with the TP600 topside control panel features the advanced M7 sensor system. The M7 system uses no external flow, temperature, or pressure sensors, as all sensors are integrated directly into the spa pack for increased reliability.

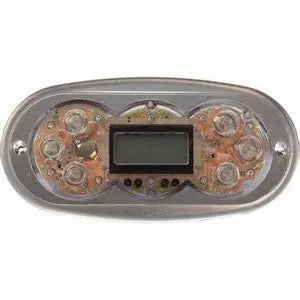

The included Balboa TP600 topside control panel features a clear, large LCD display and a user-friendly menu, making it easy to adjust and control all available settings.

The Balboa BP7 spa pack is also compatible with the ControlMySpa Wi-Fi system, allowing you to monitor and control hot tub settings remotely for added convenience.

• Can replace most previous Balboa BP systems
• Can replace Balboa VS or EL systems

BP7 system features:

• Pump 1: 120V or 240V, 2-speed, 12 amps max
• Pump 2 or blower: 120V or 240V, 2-speed, 12 amps max
• 24-hour circulation pump: 120V or 240V, 23 GPM
• Ozone: 120V or 240V
• Light: 12V
• A/V support: 120V or 240V
• Heater: 4 kW stainless steel; minimum 1-1/2" plumbing and 23 GPM flow required (4 kW @ 240V or 1 kW @ 120V)
• Optional Wi-Fi control: ControlMySpa compatible
• 1-year manufacturer’s limited warranty

Balboa TP600 topside control features:

• TP600 overlay: 1 pump, Aux (can operate Pump 2), Flip (reverses display), Lights, Temperature Up, Temperature Down
• Face dimensions: 7.1" × 3.5" (18.03 cm × 8.89 cm)
• Keypad adapter plate: Covers original opening; self-adhesive (optional use)

Important note: If your spa has more than one jet pump, a 60-amp power supply and GFCI protection are required.
